Ars::HPaint Class Reference

#include <arspaint.h>

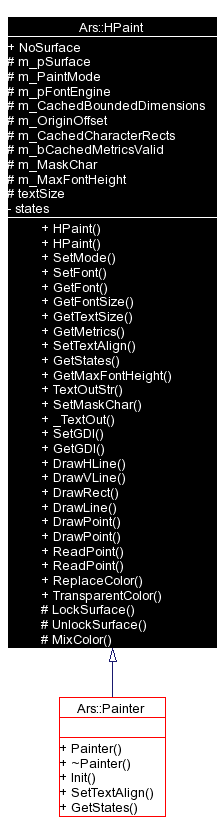

Inheritance diagram for Ars::HPaint:

Inheritance graph
[legend]

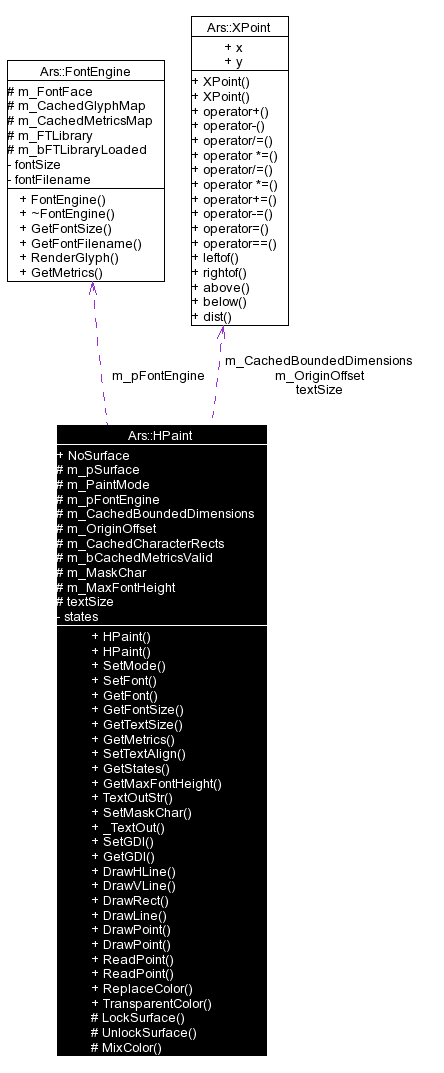

Collaboration diagram for Ars::HPaint:

Collaboration graph
[legend]

Public Types

enum  EPaintMode {
  PAINT_IGNORE = 0, PAINT_REPLACE, PAINT_NORMAL, PAINT_OR,
  PAINT_AND, PAINT_XOR
}

Public Member Functions

 HPaint (void)
 HPaint (SDL_Surface *&surface)
const EPaintMode SetMode (const EPaintMode aNewMode)
FontEngine * SetFont (FontEngine *aFontEngine)
FontEngine * GetFont (void)
const int GetFontSize (void) const
XPoint GetTextSize (const string &str)
void GetMetrics (const string &str, XPoint *pBoundedDimensions, XPoint *pOriginOffset, std::vector< XRect > *pCharacterRects=0) const
void SetTextAlign (const int vAlign, const int hAlign=-1)
virtual const unsigned long GetStates (void) const
unsigned int GetMaxFontHeight (void)
virtual void TextOutStr (const XRect &BoundingRect, const std::string &str, const RGBColor &FontColor)
void SetMaskChar (const char MaskChar)
void _TextOut (XRect &drawRect, XPoint &OriginPoint, const std::string &str, const RGBColor &FontColor)
void SetGDI (SDL_Surface *&surface)
 Assign a surface to draw onto.

SDL_Surface *& GetGDI (void) const
 Get the graphical device interafce pointer.

void DrawHLine (const int xStart, const int xEnd, const int y, const RGBColor &LineColor)
void DrawVLine (const int yStart, const int yEnd, const int x, const RGBColor &LineColor)
void DrawRect (const XRect &Rect, const bool bFilled, const RGBColor &BorderColor, const RGBColor &FillColor)
void DrawLine (const XPoint &StartPoint, const XPoint &EndPoint, const RGBColor &LineColor)
void DrawPoint (const XPoint &Point, const RGBColor &PointColor)
void DrawPoint (SDL_Surface *s, const XPoint &Point, const RGBColor &PointColor)
RGBColor ReadPoint (const XPoint &Point)
RGBColor ReadPoint (SDL_Surface *s, const XPoint &Point)
void ReplaceColor (const RGBColor &NewColor, const RGBColor &OldColor)
void TransparentColor (const RGBColor &TransparentColor)

Static Public Attributes

SDL_Surface * NoSurface = 0

Protected Member Functions

void LockSurface (void)
 Locks the SDL surface.

void UnlockSurface (void)
 Unlocks the SDL surface.

RGBColor MixColor (const RGBColor &ColorBase, const RGBColor &ColorAdd)

Protected Attributes

SDL_Surface *& m_pSurface
 A pointer to the SDL Surface to draw on.

EPaintMode m_PaintMode
 The painting mode to use.

FontEngine * m_pFontEngine
 A pointer to the Font Engine.

XPoint m_CachedBoundedDimensions
 The cached value of the rendered string's dimensions.

XPoint m_OriginOffset
 The cached value of the string's offset from the origin.

std::vector< XRect > m_CachedCharacterRects
 The cached value of the CRects for the various characters.

bool m_bCachedMetricsValid
 A boolean indicating if the cached values are valid.

char m_MaskChar
 Character to use as the mask, used for passwords and such.

int m_MaxFontHeight
 Maximum height of any character with ASCII value 0-255 for the current font.

XPoint textSize

Private Attributes

unsigned long states
 Text alignment when HPaint used alone....


Friends

class View

Member Enumeration Documentation

enum Ars::HPaint::EPaintMode


A mode for painting the surface can be specified currently this does not work for the DrawHLine, DrawVLine, or DrawRect methods

Enumeration values:
PAINT_IGNORE  Don't actually draw anything.
PAINT_REPLACE  Replace the pixel with the new pixel.
PAINT_NORMAL  Do normal color mixing (uses the alpha channel).
PAINT_OR  OR the new color in.
PAINT_AND  AND the new color in.
PAINT_XOR  XOR the new color in.

Definition at line 10 of file arspaint.h.

Referenced by Ars::XGroupBox::Draw(), and SetMode().

00010                         {
00011                 PAINT_IGNORE = 0,
00012                 PAINT_REPLACE,
00013                 PAINT_NORMAL,
00014                 PAINT_OR,
00015                 PAINT_AND,
00016                 PAINT_XOR
00017         };

Constructor & Destructor Documentation

Ars::HPaint::HPaint (  void   )


Definition at line 7 of file arspaint.cpp.

References m_pFontEngine.

00008 : m_pSurface( NoSurface ), m_PaintMode( PAINT_NORMAL )
00009 , m_pFontEngine( 0 )
00010 , m_bCachedMetricsValid(false), m_MaskChar(' '), m_MaxFontHeight(-1)
00011 {
00012         m_pFontEngine = ArsApplication::GetInstance()->GetDefaultFontEngine();
00013 }

Ars::HPaint::HPaint (  SDL_Surface *&  surface  )


Definition at line 15 of file arspaint.cpp.

References m_pFontEngine.

00016 : m_pSurface( surface ), m_PaintMode( PAINT_NORMAL )
00017 , m_pFontEngine( 0 )
00018 , m_bCachedMetricsValid(false), m_MaskChar(' '), m_MaxFontHeight(-1)
00019 {
00020         m_pFontEngine = ArsApplication::GetInstance()->GetDefaultFontEngine();
00021 }

Member Function Documentation

void Ars::HPaint::_TextOut (  XRect &  drawRect,
XPoint &  OriginPoint,
const std::string &  str,
const RGBColor &  FontColor
)


Definition at line 23 of file arspaint.cpp.

References Ars::RGBColor::blue, Ars::XRect::Bottom(), DrawPoint(), GetMetrics(), GetStates(), Ars::RGBColor::green, HALIGN_MASK, Ars::XRect::HitTest(), m_bCachedMetricsValid, m_MaskChar, m_pFontEngine, Ars::RGBColor::red, Ars::FontEngine::RenderGlyph(), Ars::XRect::Right(), S_ALIGN_BOTTOM, S_ALIGN_LEFT, S_ALIGN_RIGHT, S_ALIGN_TOP, textSize, VALIGN_MASK, Ars::XRect::Width(), Ars::XPoint::x, and Ars::XPoint::y.

Referenced by TextOutStr().

00024 {
00025         m_bCachedMetricsValid = false;
00026         XPoint OriginOffset , linebox;
00027         std::vector<XRect> CharacterRects;
00028
00029         GetMetrics( str , &linebox , &OriginOffset , &CharacterRects );
00030
00031         textSize.x = max( textSize.x , linebox.x );
00032         switch( (GetStates() & VALIGN_MASK)  )
00033         {
00034                 case S_ALIGN_TOP :      OriginPoint = XPoint( OriginPoint.x , drawRect.y );     break;
00035                 case S_ALIGN_BOTTOM :   OriginPoint = XPoint( OriginPoint.x , drawRect.Bottom() );      break;
00036         }
00037
00038         switch( (GetStates() & HALIGN_MASK) )
00039         {
00040                 case S_ALIGN_LEFT : OriginPoint = XPoint( drawRect.x , OriginPoint.y ); break;
00041                 case S_ALIGN_RIGHT : OriginPoint = XPoint( drawRect.Right() , OriginPoint.y );  break;
00042                 default : OriginPoint = XPoint( drawRect.x + drawRect.Width() / 2 , OriginPoint.y );    break;
00043         }
00044
00045         for( unsigned int i = 0 ; i < str.size() ; ++i )
00046         {
00047                 FT_BitmapGlyphRec *pGlyph;
00048                 if( m_MaskChar == ' ' )
00049                         pGlyph = m_pFontEngine->RenderGlyph( str[i] );
00050                 else
00051                         pGlyph = m_pFontEngine->RenderGlyph( m_MaskChar );
00052
00053                 for (int y = 0; y < pGlyph->bitmap.rows; ++y )
00054                 {
00055                         for (int x = 0; x < pGlyph->bitmap.width; ++x )
00056                         {
00057                                 unsigned char *PixelOffset = pGlyph->bitmap.buffer + y * pGlyph->bitmap.width + x;
00058                                 if( *PixelOffset != 0x00 )
00059                                 {
00060                                         RGBColor PixelColor(FontColor.red, FontColor.green, FontColor.blue, *PixelOffset);
00061
00062                                         XPoint PixelPoint( XPoint( x + pGlyph->left, y ) + OriginPoint + OriginOffset + CharacterRects[i].TopLeft() );
00063
00064                                         if( drawRect.HitTest( PixelPoint ) == XRect::RELPOS_INSIDE)
00065                                                 DrawPoint(PixelPoint, PixelColor);
00066                                 }
00067                         }
00068                 }
00069         }
00070 }

void Ars::HPaint::DrawHLine (  const int  xStart,
const int  xEnd,
const int  y,
const RGBColor &  LineColor
)


Draw a horizontal line

Parameters:
xStart The start position of the line
xEnd The end position of the line
y The vertical location of the line
LineColor The color of the line

Definition at line 263 of file arspaint.cpp.

References m_pSurface, Ars::RGBColor::SDLColor(), and tron.

Referenced by Ars::XBox::Draw(), Ars::XBox::DrawRaised(), DrawRect(), and Ars::XBox::DrawSunken().

00264 {
00265         if (!m_pSurface)
00266         {
00267                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00268                 return ;
00269         }
00270
00271 #ifdef WIN32
00272 #ifndef MSVC6  // There are problems with VC6 and these std lib template classes
00273 /*
00274         if (xStart < std::numeric_limits<short int>::min() ||xStart > std::numeric_limits<short int>::max()
00275                 || xEnd < std::numeric_limits<short int>::min() ||xEnd > std::numeric_limits<short int>::max()
00276                 || y < std::numeric_limits<short int>::min() ||y > std::numeric_limits<short int>::max())
00277         {
00278                 throw(ExceptionRange("HPaint::DrawHLine : Out of range - converting int to short int!"));
00279         }
00280 */
00281 #endif // MSVC6
00282 #endif // WIN32
00283
00284         SDL_Rect Rect;
00285         Rect.x = static_cast<short int>( min(xStart, xEnd) );
00286         Rect.y = static_cast<short int>(y);
00287         Rect.w = static_cast<short int>( max(xEnd - xStart + 1, xStart - xEnd + 1) );
00288         Rect.h = 1;
00289         SDL_FillRect(m_pSurface, &Rect, LineColor.SDLColor(m_pSurface->format));
00290 }

void Ars::HPaint::DrawLine (  const XPoint &  StartPoint,
const XPoint &  EndPoint,
const RGBColor &  LineColor
)


Draw a line between two points

Parameters:
StartPoint The beginning point of the line
EndPoint The end point of the line
LineColor The color to use for drawing the line

Definition at line 351 of file arspaint.cpp.

References DrawPoint(), DrawVLine(), m_pSurface, tron, Ars::XPoint::x, and Ars::XPoint::y.

Referenced by Ars::XCheckBox::Draw().

00352 {
00353         if (!m_pSurface)
00354         {
00355                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00356                 return ;
00357         }
00358         if (Point1.x == Point2.x)
00359         {
00360                 DrawVLine(Point1.y, Point2.y, Point1.x, LineColor);
00361         }
00362         else
00363         {
00364                 const double iSlope = double(Point2.y - Point1.y) / (Point2.x - Point1.x);
00365                 if( iSlope <= 1.0 && iSlope >= -1.0 )
00366                 {
00367                         XPoint StartPoint = (Point1.x < Point2.x) ? Point1 : Point2;
00368                         XPoint EndPoint = (Point1.x < Point2.x) ? Point2 : Point1;
00369                         for (int x = StartPoint.x; x <= EndPoint.x; ++x)
00370                         {
00371                                 DrawPoint(XPoint(x, static_cast<int>(StartPoint.y + (x - StartPoint.x) * iSlope)), LineColor);
00372                         }
00373                 }
00374                 else
00375                 {
00376                         XPoint StartPoint = (Point1.y < Point2.y) ? Point1 : Point2;
00377                         XPoint EndPoint = (Point1.y < Point2.y) ? Point2 : Point1;
00378                         for (int y = StartPoint.y; y <= EndPoint.y; ++y)
00379                         {
00380                                 DrawPoint(XPoint(static_cast<int>(StartPoint.x + (y - StartPoint.y) / iSlope), y), LineColor);
00381                         }
00382                 }
00383         }
00384 }

void Ars::HPaint::DrawPoint (  SDL_Surface *  s,
const XPoint &  Point,
const RGBColor &  PointColor
)


Definition at line 397 of file arspaint.cpp.

References LockSurface(), MixColor(), ReadPoint(), Ars::RGBColor::SDLColor(), tron, UnlockSurface(), Ars::XPoint::x, and Ars::XPoint::y.

00398 {
00399         if (!s)
00400         {
00401                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00402                 return ;
00403         }
00404         XPoint RealPoint = Point;
00405         if (XRect(0, 0, s->w, s->h).HitTest(RealPoint) == XRect::RELPOS_INSIDE)
00406         {
00407                 LockSurface();
00408                 Uint8* PixelOffset = static_cast<Uint8*>(s->pixels) +
00409                         s->format->BytesPerPixel * RealPoint.x + s->pitch * RealPoint.y;
00410                 switch (s->format->BytesPerPixel)
00411                 {
00412                 case 1: // 8 bpp
00413                         *reinterpret_cast<Uint8*>(PixelOffset) = static_cast<Uint8>(MixColor(ReadPoint(Point), PointColor).SDLColor(s->format));
00414                         break;
00415                 case 2: // 16 bpp
00416                         *reinterpret_cast<Uint16*>(PixelOffset) = static_cast<Uint16>(MixColor(ReadPoint(Point), PointColor).SDLColor(s->format));
00417                         break;
00418                 case 3:  // 24 bpp
00419                 {
00420                         Uint32 PixelColor = MixColor(ReadPoint(Point), PointColor).SDLColor(s->format);
00421                         Uint8* pPixelSource = reinterpret_cast<Uint8*>(&PixelColor);
00422                         Uint8* pPixelDest = reinterpret_cast<Uint8*>(PixelOffset);
00423                         *pPixelDest = *pPixelSource;
00424                         *(++pPixelDest) = *(++pPixelSource);
00425                         *(++pPixelDest) = *(++pPixelSource);
00426                         break;
00427                 }
00428                 case 4: // 32 bpp
00429                         *reinterpret_cast<Uint32*>(PixelOffset) = static_cast<Uint32>(MixColor(ReadPoint(Point), PointColor).SDLColor(s->format));
00430                         break;
00431                 default:
00432                         tron << "HPaint::DrawPoint : Unrecognized BytesPerPixel.\n";
00433                         break;
00434                 }
00435                 UnlockSurface();
00436         }
00437 }

void Ars::HPaint::DrawPoint (  const XPoint &  Point,
const RGBColor &  PointColor
)


Draw a pixel

Parameters:
Point The location of the pixel to set
PointColor The color to set the pixel to

Definition at line 386 of file arspaint.cpp.

References m_pSurface, and tron.

Referenced by _TextOut(), Ars::XBox::DrawFocus(), DrawLine(), Ars::XBox::DrawRaised(), Ars::XBox::DrawSunken(), and ReplaceColor().

00387 {
00388         if (!m_pSurface)
00389         {
00390                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00391                 return ;
00392         }
00393         DrawPoint( m_pSurface , Point , PointColor );
00394 }

void Ars::HPaint::DrawRect (  const XRect &  Rect,
const bool  bFilled,
const RGBColor &  BorderColor,
const RGBColor &  FillColor
)


Draw a rectangle

Parameters:
Rect A CRect that describes the rectangle
bFilled If true, rectangle will be filled with the FillColor, otherwise only the border is drawn
BorderColor The color for the border
FillColor The color to fill the rectangle with

Definition at line 322 of file arspaint.cpp.

References Ars::XRect::Bottom(), DrawHLine(), DrawVLine(), Ars::XRect::Grow(), m_pSurface, Ars::XRect::Right(), Ars::RGBColor::SDLColor(), and tron.

Referenced by Ars::XScrollBar::Draw(), Ars::XProgress::Draw(), Ars::XListBox::Draw(), Ars::XGroupBox::Draw(), Ars::XEditBox::Draw(), Ars::XCheckBox::Draw(), Ars::XBox::Draw(), and Ars::Window::DrawBG().

00323 {
00324         if (!m_pSurface)
00325         {
00326                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00327                 return ;
00328         }
00329         XRect RealRect( Rect );
00330
00331         if (bFilled)
00332         {
00333                 RealRect.w += 1;
00334                 RealRect.h += 1;
00335                 SDL_FillRect(m_pSurface, &RealRect, FillColor.SDLColor(m_pSurface->format));
00336         }
00337
00338         if (!bFilled || (BorderColor != FillColor))
00339         {
00340                 RealRect = Rect;
00341
00342                 DrawHLine(RealRect.x, RealRect.Right(), RealRect.y, BorderColor);
00343                 DrawHLine(RealRect.x, RealRect.Right(), RealRect.Bottom(), BorderColor);
00344                 DrawVLine(RealRect.y, RealRect.Bottom(), RealRect.x, BorderColor);
00345                 DrawVLine(RealRect.y, RealRect.Bottom(), RealRect.Right(), BorderColor);
00346                 RealRect.Grow(-1); //In case we have to fill the rect, then it's ready to go.
00347         }
00348 }

void Ars::HPaint::DrawVLine (  const int  yStart,
const int  yEnd,
const int  x,
const RGBColor &  LineColor
)


Draw a vertical line

Parameters:
yStart The start position of the line
yEnd The end position of the line
x The horizontal location of the line
LineColor The color of the line

Definition at line 293 of file arspaint.cpp.

References m_pSurface, Ars::RGBColor::SDLColor(), and tron.

Referenced by Ars::XEditBox::Draw(), Ars::XBox::Draw(), DrawLine(), Ars::XBox::DrawRaised(), DrawRect(), and Ars::XBox::DrawSunken().

00294 {
00295         if (!m_pSurface)
00296         {
00297                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00298                 return ;
00299         }
00300 #ifdef WIN32
00301 #ifndef MSVC6  // There are problems with VC6 and these std lib template classes
00302 /*
00303         if (yStart < std::numeric_limits<short int>::min() ||yStart > std::numeric_limits<short int>::max()
00304                 || yEnd < std::numeric_limits<short int>::min() ||yEnd > std::numeric_limits<short int>::max()
00305                 || x < std::numeric_limits<short int>::min() ||x > std::numeric_limits<short int>::max())
00306         {
00307                 throw(ExceptionRange("HPaint::DrawVLine : Out of range - converting int to short int!"));
00308         }
00309 */
00310 #endif // MSVC6
00311 #endif // WIN32
00312
00313         SDL_Rect Rect;
00314         Rect.x = static_cast<short int>(x);
00315         Rect.y = static_cast<short int>( min(yStart, yEnd) );
00316         Rect.w = 1;
00317         Rect.h = static_cast<short int>( max(yEnd - yStart + 1, yStart - yEnd + 1) );
00318         SDL_FillRect(m_pSurface, &Rect, LineColor.SDLColor(m_pSurface->format));
00319 }

FontEngine* Ars::HPaint::GetFont (  void   )  [inline]


Definition at line 62 of file arspaint.h.

References m_pFontEngine.

Referenced by Ars::XListBox::AddItem(), Ars::XTextBox::Init(), Ars::XScrollBar::Init(), Ars::XListBox::Init(), and Ars::XDropDown::Init().

00062 {       return m_pFontEngine;   }

const int Ars::HPaint::GetFontSize (  void   )  const [inline]


Definition at line 64 of file arspaint.h.

References Ars::FontEngine::GetFontSize(), and m_pFontEngine.

Referenced by Ars::XListBox::AddItem(), Ars::XTextBox::Draw(), Ars::XGroupBox::Draw(), Ars::XEditBox::Draw(), Ars::XCheckBox::Draw(), Ars::XButtonImage::Draw(), Ars::XListBox::Init(), Ars::XListBox::RemoveItem(), Ars::XTextBox::SetWndText(), and Ars::XToolTip::SetWndText().

00064 {       return m_pFontEngine->GetFontSize();    }

SDL_Surface*& Ars::HPaint::GetGDI (  void   )  const [inline]


Get the graphical device interafce pointer.

Definition at line 111 of file arspaint.h.

References m_pSurface.

Referenced by Ars::XImage::Draw(), Ars::XButtonImage::Draw(), Ars::XBox::Draw(), Ars::Window::DrawBG(), Ars::Window::SetParent(), Ars::XMPEG::SetupWindow(), Ars::Window::wmPaint(), and Ars::Window::~Window().

00111 {       return m_pSurface;      }

unsigned int Ars::HPaint::GetMaxFontHeight (  void   )


Get the maximum height of the font, ASCII characters 0-255

Returns:
The max height of the font

Definition at line 150 of file arspaint.cpp.

References Ars::FontEngine::GetMetrics(), m_MaxFontHeight, and m_pFontEngine.

Referenced by TextOutStr().

00151 {
00152         if (m_MaxFontHeight < 0)
00153         {
00154                 int maxHeight=0;
00155                 FT_Glyph_Metrics* pMetrics;
00156                 for(int i=0; i < 256; i++)
00157                 {
00158                         pMetrics = m_pFontEngine->GetMetrics((char)i);
00159                         if ((pMetrics->height >> 6) > maxHeight)
00160                         {
00161                                 maxHeight = (pMetrics->height >> 6);
00162                         }
00163                         //maxHeight = std::max(maxHeight, pMetrics->height);
00164                 }
00165                 m_MaxFontHeight = maxHeight + 2;
00166         }
00167         return m_MaxFontHeight;
00168 }

void Ars::HPaint::GetMetrics (  const string &  str,
XPoint *  pBoundedDimensions,
XPoint *  pOriginOffset,
std::vector< XRect > *  pCharacterRects = 0
)  const


Get some metrics for the rendered string

Parameters:
pBoundedDimensions A pointer to a CPoint object that will receive the width and height of the rendered string
pOriginOffset A pointer to a CPoint object that will receive the offset of the top left corner of the rendered string from the origin of the string
pCharacterRects A pointer to a CRect vector that will receive CRects that contain each character. The corrdinates are in reference to the top left corner of the string as a whole

Definition at line 170 of file arspaint.cpp.

References Ars::FontEngine::GetMetrics(), GetStates(), HALIGN_MASK, m_bCachedMetricsValid, m_CachedBoundedDimensions, m_CachedCharacterRects, m_MaskChar, m_OriginOffset, m_pFontEngine, S_ALIGN_BOTTOM, S_ALIGN_LEFT, S_ALIGN_RIGHT, S_ALIGN_TOP, VALIGN_MASK, Ars::XPoint::x, and Ars::XPoint::y.

Referenced by _TextOut(), Ars::XGroupBox::Draw(), Ars::XEditBox::Draw(), Ars::XEditBox::evMouseButtonDown(), Ars::XEditBox::evMouseMove(), and GetTextSize().

00171 {
00172         if (! m_bCachedMetricsValid )
00173         {
00174                 m_CachedCharacterRects.clear();
00175
00176                 int iMinY = 0;
00177                 int iMaxY = 0;
00178                 int iLength = 0;
00179                 for (unsigned int i = 0; i < str.size(); ++i)
00180                 {
00181                         FT_Glyph_Metrics* pMetrics;
00182                         if (m_MaskChar == ' ')
00183                         {
00184                                 pMetrics = m_pFontEngine->GetMetrics(str[i]);
00185                         }
00186                         else
00187                         {
00188                                 pMetrics = m_pFontEngine->GetMetrics(m_MaskChar);
00189                         }
00190
00191
00192                         if ((pMetrics->horiBearingY - pMetrics->height) < iMinY)
00193                         {
00194                                 iMinY = pMetrics->horiBearingY - pMetrics->height;
00195                         }
00196                         if (pMetrics->horiBearingY > iMaxY)
00197                         {
00198                                 iMaxY = pMetrics->horiBearingY;
00199                         }
00200                         iLength += (pMetrics->horiAdvance);
00201                         // The top and bottom values of the rect are not actually in rect coordinates at this point, since iMaxY and iMinY are not yet know
00202                         m_CachedCharacterRects.push_back( XRect((iLength - pMetrics->horiAdvance) >> 6, pMetrics->horiBearingY >> 6, (iLength >> 6) - ((iLength - pMetrics->horiAdvance) >> 6) , (pMetrics->height >> 6) - (pMetrics->horiBearingY >> 6 )));
00203                 }
00204
00205                 iMinY = iMinY >> 6;
00206                 iMaxY = iMaxY >> 6;
00207                 iLength = iLength >> 6;
00208
00209                 // now fix the top and bottom values of the rects
00210                 for(std::vector<XRect>::iterator iter = m_CachedCharacterRects.begin(); iter != m_CachedCharacterRects.end(); ++iter)
00211                         iter->y = iMaxY - iter->y;
00212
00213                 // Tack an empty rect on the end
00214                 m_CachedCharacterRects.push_back(XRect(iLength, iMaxY, iLength, iMinY));
00215
00216                 m_CachedBoundedDimensions = XPoint(iLength, iMaxY - iMinY);
00217
00218                 switch ( (GetStates() & HALIGN_MASK) )
00219                 {
00220                 default:
00221                         m_OriginOffset.x = -iLength / 2;
00222                         break;
00223                 case S_ALIGN_RIGHT:
00224                         m_OriginOffset.x = -iLength;
00225                         break;
00226                 case S_ALIGN_LEFT:
00227                         m_OriginOffset.x = 0;
00228                         break;
00229                 }
00230
00231                 switch( (GetStates() & VALIGN_MASK) )
00232                 {
00233                 case S_ALIGN_TOP:
00234                         m_OriginOffset.y = 0;
00235                         break;
00236                 case S_ALIGN_BOTTOM:
00237                         m_OriginOffset.y = iMinY - iMaxY;
00238                         break;
00239                 default:
00240                         m_OriginOffset.y = (iMinY - iMaxY) / 2;
00241                         break;
00242                 }
00243
00244                 m_bCachedMetricsValid = true;
00245         }
00246
00247         if (pBoundedDimensions)
00248         {
00249                 *pBoundedDimensions = m_CachedBoundedDimensions;
00250         }
00251
00252         if (pOriginOffset)
00253         {
00254                 *pOriginOffset = m_OriginOffset;
00255         }
00256
00257         if (pCharacterRects)
00258         {
00259                 *pCharacterRects = m_CachedCharacterRects;
00260         }
00261 }

virtual const unsigned long Ars::HPaint::GetStates (  void   )  const [inline, virtual]


Reimplemented in Ars::Painter.

Definition at line 89 of file arspaint.h.

References states.

Referenced by _TextOut(), GetMetrics(), and TextOutStr().

00089 {       return states;  }

XPoint Ars::HPaint::GetTextSize (  const string &  str  )


Get the rectangle requested to draw the string. including multiple lines

Returns:
the size in width and height

Definition at line 116 of file arspaint.cpp.

References Ars::FontEngine::GetFontSize(), GetMetrics(), m_bCachedMetricsValid, m_pFontEngine, Ars::XPoint::x, and Ars::XPoint::y.

Referenced by Ars::XButtonImage::Draw(), Ars::XEditBox::evKeyDown(), and Ars::XToolTip::SetWndText().

00117 {
00118         string  str;
00119         for( int i = 0 ; aStr[i] ; i++ )
00120                 if( aStr[i] == '\t' )
00121                         str += "    ";
00122                 else
00123                         str += aStr[i];
00124         XPoint  ans( 0 , 0 );
00125
00126         int     nrlines = 1;
00127         string  s = str;
00128         string::size_type       n0 = 0 , n1 = s.find( '\n' , n0 );
00129         while( n1 != string::npos )
00130         {
00131                 XPoint  lineBox( 0 , 0 );
00132
00133                 m_bCachedMetricsValid = false;
00134                 GetMetrics( s.substr( n0 , n1 - n0 ) , &lineBox , 0 , 0 );
00135                 ans.x = max( ans.x , lineBox.x );
00136                 n0 = n1 + 1;
00137                 n1 = s.find( '\n' , n0 );
00138                 nrlines += 1;
00139         }
00140         XPoint  lineBox( 0 , 0 );
00141         m_bCachedMetricsValid = false;
00142         GetMetrics( s.substr( n0 ) , &lineBox , 0 , 0 );
00143         ans.x = max( ans.x , lineBox.x );
00144
00145         ans.y = (m_pFontEngine->GetFontSize() + 2) * nrlines;
00146
00147         return ans;
00148 }

void Ars::HPaint::LockSurface (  void   )  [protected]


Locks the SDL surface.

Definition at line 491 of file arspaint.cpp.

References m_pSurface, and tron.

Referenced by DrawPoint().

00492 {
00493         if (!m_pSurface)
00494         {
00495                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00496                 return ;
00497         }
00498         if (SDL_MUSTLOCK(m_pSurface))
00499         {
00500                 if (SDL_LockSurface(m_pSurface) < 0)
00501                 {
00502                         SDL_Delay(10);
00503                         if (SDL_LockSurface(m_pSurface) < 0)
00504                         {
00505                                 tron << "Unable to lock surface.\n";
00506                         }
00507                 }
00508         }
00509 }

RGBColor Ars::HPaint::MixColor (  const RGBColor &  ColorBase,
const RGBColor &  ColorAdd
)  [protected]


Mixes thje two colors based on the painting mode

Parameters:
ColorBase The color to use as the base
ColorAdd The color to add to the base
Returns:
A CRGBColor object representing the mixed colors

Definition at line 524 of file arspaint.cpp.

References m_PaintMode, PAINT_AND, PAINT_IGNORE, PAINT_NORMAL, PAINT_OR, PAINT_REPLACE, and PAINT_XOR.

Referenced by DrawPoint().

00525 {
00526         RGBColor MixedColor( 0x00, 0x00, 0x00, 0x00 );
00527         switch (m_PaintMode)
00528         {
00529         case PAINT_IGNORE:
00530                 MixedColor = ColorBase;
00531                 break;
00532         case PAINT_REPLACE:
00533                 MixedColor = ColorAdd;
00534                 break;
00535         case PAINT_NORMAL:
00536                 MixedColor = ColorBase + ColorAdd;
00537                 break;
00538         case PAINT_AND:
00539                 MixedColor = ColorBase  &ColorAdd;
00540                 break;
00541         case PAINT_OR:
00542                 MixedColor = ColorBase | ColorAdd;
00543                 break;
00544         case PAINT_XOR:
00545                 MixedColor = ColorBase ^ ColorAdd;
00546                 break;
00547         }
00548
00549         return MixedColor;
00550 }

RGBColor Ars::HPaint::ReadPoint (  SDL_Surface *  s,
const XPoint &  Point
)


Definition at line 449 of file arspaint.cpp.

References tron, Ars::XPoint::x, and Ars::XPoint::y.

00450 {
00451         if (!s)
00452         {
00453                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00454                 return RGBColor( 0 , 0 ,0 );
00455         }
00456         XPoint RealPoint = Point;
00457         Uint32 PixelColor = 0;
00458         if (XRect(0, 0, s->w, s->h).HitTest(RealPoint) == XRect::RELPOS_INSIDE)
00459         {
00460                 Uint8* PixelOffset = static_cast<Uint8*>(s->pixels) +
00461                         s->format->BytesPerPixel * RealPoint.x + s->pitch * RealPoint.y;
00462                 switch (s->format->BytesPerPixel)
00463                 {
00464                 case 1: // 8 bpp
00465                         PixelColor = *reinterpret_cast<Uint8*>(PixelOffset);
00466                         break;
00467                 case 2: // 16 bpp
00468                         PixelColor = *reinterpret_cast<Uint16*>(PixelOffset);
00469                         break;
00470                 case 3: // 24 bpp
00471                 {
00472                         Uint8* pPixelDest = reinterpret_cast<Uint8*>(&PixelColor);
00473                         Uint8* pPixelSource = reinterpret_cast<Uint8*>(PixelOffset);
00474                         *pPixelDest = *pPixelSource;
00475                         *(++pPixelDest) = *(++pPixelSource);
00476                         *(++pPixelDest) = *(++pPixelSource);
00477                         break;
00478                 }
00479                 case 4: // 32 bpp
00480                         PixelColor = *reinterpret_cast<Uint32*>(PixelOffset);
00481                         break;
00482                 default:
00483                         tron << "HPaint::DrawPoint : Unrecognized BytesPerPixel.\n";
00484                         break;
00485                 }
00486         }
00487         return RGBColor(&PixelColor, s->format);
00488 }

RGBColor Ars::HPaint::ReadPoint (  const XPoint &  Point  )


Get the color of the pixel at the given point

Parameters:
Point The location of the pixel to read
Returns:
A CRGBColor object representing the color of the pixel

Definition at line 440 of file arspaint.cpp.

References m_pSurface, and tron.

Referenced by DrawPoint(), and ReplaceColor().

00441 {
00442         if (!m_pSurface)
00443                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00444         else
00445                 return ReadPoint( m_pSurface , Point );
00446         return RGBColor( 0 , 0 ,0 );
00447 }

void Ars::HPaint::ReplaceColor (  const RGBColor &  NewColor,
const RGBColor &  OldColor
)


Replace all pixels of a certain color with a new color

Parameters:
NewColor The color value to replace the pixels with
OldColor The color of the pixels to be replaced

Definition at line 553 of file arspaint.cpp.

References DrawPoint(), m_pSurface, and ReadPoint().

00554 {
00555         for (int y = 0; y < m_pSurface->h; ++y)
00556         {
00557                 for (int x = 0; x < m_pSurface->w; ++x)
00558                 {
00559                         XPoint point(x, y);
00560                         if(ReadPoint(point) == OldColor)
00561                         {
00562                                 DrawPoint(point, NewColor);
00563                         }
00564                 }
00565         }
00566 }

FontEngine* Ars::HPaint::SetFont (  FontEngine *  aFontEngine  )  [inline]


Definition at line 55 of file arspaint.h.

References m_bCachedMetricsValid, and m_pFontEngine.

Referenced by Ars::XListBox::Draw(), Ars::XTextBox::Init(), Ars::XScrollBar::Init(), Ars::XListBox::Init(), and Ars::XDropDown::Init().

00056         {
00057                 FontEngine *ans = m_pFontEngine;
00058                 m_pFontEngine = aFontEngine;
00059                 m_bCachedMetricsValid = false;
00060                 return ans;
00061         }

void Ars::HPaint::SetGDI (  SDL_Surface *&  surface  )  [inline]


Assign a surface to draw onto.

Definition at line 108 of file arspaint.h.

References m_pSurface.

Referenced by Ars::Window::SetParent().

00108 {       m_pSurface = surface;   }

void Ars::HPaint::SetMaskChar (  const char  MaskChar  )  [inline]


Set the mask character

Parameters:
MaskChar Character to use as the mask

Definition at line 103 of file arspaint.h.

References m_MaskChar.

Referenced by Ars::XEditBox::Draw().

00103 { m_MaskChar = MaskChar; }

const EPaintMode Ars::HPaint::SetMode (  const EPaintMode  aNewMode  )  [inline]


Definition at line 48 of file arspaint.h.

References EPaintMode, and m_PaintMode.

Referenced by Ars::XGroupBox::Draw().

00049         {
00050                 EPaintMode      ans = m_PaintMode;
00051                 m_PaintMode = aNewMode;
00052                 return ans;
00053         }

void Ars::HPaint::SetTextAlign (  const int  vAlign,
const int  hAlign = -1
)  [inline]


Reimplemented in Ars::Painter.

Definition at line 76 of file arspaint.h.

References HALIGN_MASK, states, and VALIGN_MASK.

00077         {
00078                 if( vAlign != -1 )
00079                 {
00080                         states &= ~VALIGN_MASK;
00081                         states |= vAlign;
00082                 }
00083                 if( hAlign != -1 )
00084                 {
00085                         states &= ~HALIGN_MASK;
00086                         states |= vAlign;
00087                 }
00088         }

void Ars::HPaint::TextOutStr (  const XRect &  BoundingRect,
const std::string &  str,
const RGBColor &  FontColor
)  [virtual]


Render the string onto the given surface

Parameters:
pSurface A pointer to the surface that will be drawn to
BoundingRect The CRect to clip the rendered string to
FontColor The color to draw the string in

Definition at line 72 of file arspaint.cpp.

References _TextOut(), GetMaxFontHeight(), GetStates(), Ars::XRect::Height(), m_bCachedMetricsValid, textSize, Ars::XRect::TopLeft(), VALIGN_MASK, Ars::XPoint::x, and Ars::XPoint::y.

Referenced by Ars::XTextBox::Draw(), Ars::XListBox::Draw(), Ars::XLabel::Draw(), Ars::XGroupBox::Draw(), and Ars::XEditBox::Draw().

00073 {
00074         string  str;
00075         for( int i = 0 ; aStr[i] ; i++ )
00076                 if( aStr[i] == '\t' )
00077                         str += "    ";
00078                 else
00079                         str += aStr[i];
00080
00081         m_bCachedMetricsValid = false;
00082         textSize = XPoint( 0 , 0 );
00083
00084         XPoint  OriginPoint = BoundingRect.TopLeft();
00085         XRect   drawRect = BoundingRect;
00086
00087         int     nrlines = 1;
00088         string  s = str;
00089         string::size_type       n0 = 0 , n1 = s.find( '\n' , n0 );
00090         while( n1 != string::npos )
00091         {
00092                 n0 = n1 + 1;
00093                 n1 = s.find( '\n' , n0 );
00094                 nrlines += 1;
00095         }
00096         if( (GetStates() & VALIGN_MASK) == 0 )
00097                 OriginPoint = XPoint( OriginPoint.x , OriginPoint.y + 2 + max( 0 , (int)(drawRect.Height() - ((GetMaxFontHeight() + 2) * (nrlines -1))) / 2 ) );
00098
00099         textSize.y = (GetMaxFontHeight() + 2) * nrlines;
00100         n0 = 0 , n1 = s.find( '\n' , n0 );
00101         while( n1 != string::npos )
00102         {
00103                 _TextOut( drawRect , OriginPoint , s.substr( n0 , n1 - n0 ) , FontColor );
00104
00105                 n0 = n1 + 1;
00106                 n1 = s.find( '\n' , n0 );
00107                 if( (GetStates() & VALIGN_MASK) == 0 )
00108                         OriginPoint = XPoint( OriginPoint.x , OriginPoint.y + (GetMaxFontHeight() + 2) );
00109                 else
00110                         drawRect.y = drawRect.y + (GetMaxFontHeight() + 2);
00111         }
00112
00113         _TextOut( drawRect , OriginPoint , s.substr( n0 ) , FontColor );
00114 }

void Ars::HPaint::TransparentColor (  const RGBColor &  TransparentColor  )


Sets the transparent pixel

Parameters:
TransparentColor The pixel color to be treated as transparent

Definition at line 569 of file arspaint.cpp.

References m_pSurface, and Ars::RGBColor::SDLColor().

00570 {
00571         SDL_SetColorKey(m_pSurface, SDL_SRCCOLORKEY, TransparentColor.SDLColor(m_pSurface->format));
00572 }

void Ars::HPaint::UnlockSurface (  void   )  [protected]


Unlocks the SDL surface.

Definition at line 512 of file arspaint.cpp.

References m_pSurface, and tron.

Referenced by DrawPoint().

00513 {
00514         if (!m_pSurface)
00515         {
00516                 tron<< "HPaint::HPaint : Invalid pointer to surface.\n";
00517                 return ;
00518         }
00519         if (SDL_MUSTLOCK(m_pSurface))
00520                 SDL_UnlockSurface(m_pSurface);
00521 }

Friends And Related Function Documentation

friend class View [friend]


Reimplemented in Ars::Window.

Definition at line 20 of file arspaint.h.

Field Documentation

bool Ars::HPaint::m_bCachedMetricsValid [mutable, protected]


A boolean indicating if the cached values are valid.

Definition at line 31 of file arspaint.h.

Referenced by _TextOut(), GetMetrics(), GetTextSize(), SetFont(), and TextOutStr().

XPoint Ars::HPaint::m_CachedBoundedDimensions [mutable, protected]


The cached value of the rendered string's dimensions.

Definition at line 28 of file arspaint.h.

Referenced by GetMetrics().

std::vector<XRect> Ars::HPaint::m_CachedCharacterRects [mutable, protected]


The cached value of the CRects for the various characters.

Definition at line 30 of file arspaint.h.

Referenced by GetMetrics().

char Ars::HPaint::m_MaskChar [protected]


Character to use as the mask, used for passwords and such.

Definition at line 32 of file arspaint.h.

Referenced by _TextOut(), GetMetrics(), and SetMaskChar().

int Ars::HPaint::m_MaxFontHeight [protected]


Maximum height of any character with ASCII value 0-255 for the current font.

Definition at line 33 of file arspaint.h.

Referenced by GetMaxFontHeight().

XPoint Ars::HPaint::m_OriginOffset [mutable, protected]


The cached value of the string's offset from the origin.

Definition at line 29 of file arspaint.h.

Referenced by GetMetrics().

EPaintMode Ars::HPaint::m_PaintMode [protected]


The painting mode to use.

Definition at line 24 of file arspaint.h.

Referenced by MixColor(), and SetMode().

FontEngine* Ars::HPaint::m_pFontEngine [protected]


A pointer to the Font Engine.

Definition at line 26 of file arspaint.h.

Referenced by _TextOut(), GetFont(), GetFontSize(), GetMaxFontHeight(), GetMetrics(), GetTextSize(), HPaint(), Ars::Painter::Init(), and SetFont().

SDL_Surface*& Ars::HPaint::m_pSurface [protected]


A pointer to the SDL Surface to draw on.

Definition at line 22 of file arspaint.h.

Referenced by DrawHLine(), DrawLine(), DrawPoint(), DrawRect(), DrawVLine(), GetGDI(), LockSurface(), ReadPoint(), ReplaceColor(), SetGDI(), TransparentColor(), UnlockSurface(), Ars::View::View(), Ars::View::wmResize(), and Ars::View::~View().

SDL_Surface * Ars::HPaint::NoSurface = 0 [static]


Definition at line 5 of file arspaint.cpp.

unsigned long Ars::HPaint::states [private]


Text alignment when HPaint used alone....

Definition at line 38 of file arspaint.h.

Referenced by GetStates(), and SetTextAlign().

XPoint Ars::HPaint::textSize [protected]


Definition at line 34 of file arspaint.h.

Referenced by _TextOut(), and TextOutStr().

The documentation for this class was generated from the following files:
Generated on Fri Dec 5 04:06:44 2003 for Borqueror by doxygen 1.3.3
