Ars::XButtonImage Class Reference

#include <xbuttonimage.h>

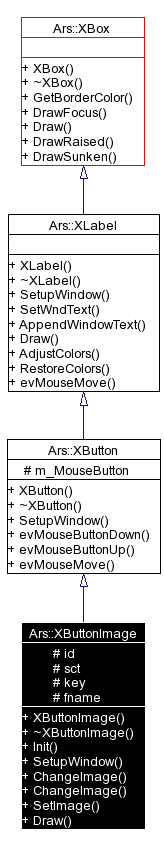

Inheritance diagram for Ars::XButtonImage:

Inheritance graph
[legend]
Collaboration diagram for Ars::XButtonImage:

Collaboration graph
[legend]

Public Member Functions

 XButtonImage (void)
 ~XButtonImage (void)
 Standard destructor.

virtual void Init (icstring &aStr)
virtual const bool SetupWindow (const Message &msg)
 Initialize the XButtonImage.

void ChangeImage (const std::string &aFilename)
void ChangeImage (const std::string &aSection, const std::string &aId, std::string aFilename="")
void SetImage (SDL_Surface *aImage)
virtual void Draw (void)
 Draws the checkbox.


Protected Attributes

int id
std::string sct
std::string key
std::string fname

Constructor & Destructor Documentation

Ars::XButtonImage::XButtonImage (  void   )


Constructs a new XButtonImage

Parameters:
WindowRect A CRect that defines the outer limits of the control
aStr the rest of the resource to initialize the object

Definition at line 6 of file xbuttonimage.cpp.

00007 : id( -1 )
00008 {
00009 }

Ars::XButtonImage::~XButtonImage (  void   )


Standard destructor.

Definition at line 11 of file xbuttonimage.cpp.

00012 {
00013 }

Member Function Documentation

void Ars::XButtonImage::ChangeImage (  const std::string &  aSection,
const std::string &  aId,
std::string  aFilename = ""
)


Definition at line 52 of file xbuttonimage.cpp.

References Ars::Window::clientRect, and id.

00053 {
00054         id = Graf::LoadImg( aSection , aId , aFilename );
00055         Graf::ButtonImg( id , static_cast<XRect &>( *this ) );
00056         clientRect = *this;
00057 }

void Ars::XButtonImage::ChangeImage (  const std::string &  aFilename  )


Definition at line 45 of file xbuttonimage.cpp.

References Ars::Window::clientRect, and id.

Referenced by Ars::XScrollBar::SetupWindow().

00046 {
00047         id = Graf::LoadImg( aFilename );
00048         Graf::ButtonImg( id , static_cast<XRect &>( *this ) );
00049         clientRect = *this;
00050 }

void Ars::XButtonImage::Draw (  void   )  [virtual]


Draws the checkbox.

Reimplemented from Ars::XLabel.

Definition at line 66 of file xbuttonimage.cpp.

References Ars::XRect::Center(), Ars::Window::DrawBG(), Ars::HPaint::GetFontSize(), Ars::HPaint::GetGDI(), Ars::Painter::GetStates(), Ars::HPaint::GetTextSize(), Ars::Thing::GetWindowRect(), Ars::Window::GetWindowText(), Ars::XRect::Grow(), HALIGN_MASK, id, Ars::Thing::ResetState(), S_ALIGN_BOTTOM, S_ALIGN_LEFT, S_ALIGN_RIGHT, S_ALIGN_TOP, S_DISABLED, S_FOCUS, S_HIGHLIGHT, S_SELECTED, Ars::Thing::SetState(), VALIGN_MASK, Ars::XPoint::x, and Ars::XPoint::y.

00067 {
00068         if( id == -1 )
00069                 XButton::Draw();
00070         else
00071         {
00072                 XRect   dst( GetWindowRect() );
00073                 SDL_Surface     *sfc = Graf::ButtonImg( id , dst ) , *bkgnd = 0;
00074
00075                 if( GetStates() & S_DISABLED )
00076                         bkgnd = Graf::ButtonImg( Graf::Dark , dst );
00077                 else if( (GetStates() & (S_SELECTED|S_HIGHLIGHT|S_FOCUS)) != 0 )
00078                         bkgnd = Graf::ButtonImg( Graf::Light , dst );
00079
00080                 if( bkgnd )
00081                         SDL_BlitSurface( bkgnd , NULL , GetGDI() , &dst );
00082
00083                 if( (GetStates() & S_SELECTED) != 0 )
00084                         SDL_SetAlpha( sfc , SDL_SRCALPHA , 100 );
00085                 else if( GetStates() & S_DISABLED )
00086                         SDL_SetAlpha( sfc , SDL_SRCALPHA , 100 );
00087                 else if( (GetStates() & (S_HIGHLIGHT|S_FOCUS)) != 0 )
00088                         SDL_SetAlpha( sfc , SDL_SRCALPHA , 160 );
00089                 else
00090                         SDL_SetAlpha( sfc , SDL_SRCALPHA , 192 );
00091
00092                 SDL_BlitSurface( sfc , 0 , GetGDI() , &dst );
00093
00094                 if( !GetWindowText().empty() )
00095                 {
00096                         XPoint  box = GetTextSize( GetWindowText() );
00097                         XRect   bak = GetWindowRect();
00098                         XRect   &wnd = *this;
00099                         XPoint  center = bak.Center();
00100                         const unsigned long     stateBak = GetStates();
00101                         if( GetStates() & S_ALIGN_TOP )
00102                         {
00103                                 wnd = wnd - XPoint( 0, box.y + GetFontSize() );
00104                                 wnd.x = center.x - box.x / 2;
00105                         }
00106                         else if( GetStates() & S_ALIGN_BOTTOM )
00107                         {
00108                                 wnd = wnd + XPoint( 0, wnd.h + GetFontSize() );
00109                                 wnd.x = center.x - box.x / 2;
00110                         }
00111                         else if( GetStates() & S_ALIGN_RIGHT )
00112                         {
00113                                 wnd = wnd + XPoint( wnd.w + GetFontSize() , 0 );
00114                                 wnd.y = center.y - box.y / 2;
00115                         }
00116                         else if( GetStates() & S_ALIGN_LEFT )
00117                         {
00118                                 wnd = wnd - XPoint( box.x + GetFontSize() , 0 );
00119                                 wnd.y = center.y - box.y / 2;
00120                         }
00121                         wnd.w = box.x;
00122                         wnd.h = box.y;
00123                         ResetState( VALIGN_MASK|HALIGN_MASK );
00124                         Grow( GetFontSize() / 2 );
00125                         DrawBG();
00126                         XButton::Draw();
00127                         SetState( stateBak );
00128                         SDL_UpdateRect( GetGDI() , x , y , w + 1 , h + 1 );
00129                         static_cast<XRect &>( *this ) = bak;
00130                 }
00131         }
00132 }

void Ars::XButtonImage::Init (  icstring &  aStr  )  [virtual]


Initialize the thing object via a string the CAR identifiers used are: cfg: "section" "key" "fname" NB if fname starts with @ the string is the key of associated with afilename in the global Cfg file

Reimplemented from Ars::Window.

Definition at line 15 of file xbuttonimage.cpp.

References fname, icstring, key, and sct.

Referenced by Ars::XScrollBar::Init(), and Ars::XDropDown::Init().

00016 {
00017         XButton::Init( aStr );
00018
00019         icstring        tmp = Rsrc::FindCrdOf( aStr , "cfg" );
00020
00021         sct = Rsrc::GetStr( tmp );
00022         key = Rsrc::GetStr( tmp );
00023         fname = Rsrc::GetStr( tmp );
00024 }

void Ars::XButtonImage::SetImage (  SDL_Surface *  aImage  )


Definition at line 59 of file xbuttonimage.cpp.

References Ars::Window::clientRect, and id.

00060 {
00061         id = Graf::AddImage( aImage );
00062         Graf::ButtonImg( id , static_cast<XRect &>( *this ) );
00063         clientRect = *this;
00064 }

const bool Ars::XButtonImage::SetupWindow (  const Message &  msg  )  [virtual]


Initialize the XButtonImage.

Reimplemented from Ars::XButton.

Definition at line 26 of file xbuttonimage.cpp.

References Ars::Window::clientRect, fname, id, key, and sct.

Referenced by Ars::XScrollBar::SetupWindow(), and Ars::XDropDown::SetupWindow().

00027 {
00028         XButton::SetupWindow( msg );
00029
00030         if( !sct.empty() || !key.empty() || !fname.empty() )
00031         {
00032                 if( id == -1 )
00033                         if( key.empty() )
00034                                 id = Graf::LoadImg( fname.empty() ? sct : fname );
00035                         else
00036                                 id = Graf::LoadImg( sct , key , fname );
00037
00038                 Graf::ButtonImg( id , static_cast<XRect &>( *this ) );
00039                 clientRect = *this;
00040         }
00041
00042         return true;
00043 }

Field Documentation

std::string Ars::XButtonImage::fname [protected]


Definition at line 10 of file xbuttonimage.h.

Referenced by Init(), and SetupWindow().

int Ars::XButtonImage::id [protected]


Definition at line 9 of file xbuttonimage.h.

Referenced by ChangeImage(), Draw(), SetImage(), and SetupWindow().

std::string Ars::XButtonImage::key [protected]


Definition at line 10 of file xbuttonimage.h.

Referenced by Init(), and SetupWindow().

std::string Ars::XButtonImage::sct [protected]


Definition at line 10 of file xbuttonimage.h.

Referenced by Init(), and SetupWindow().

The documentation for this class was generated from the following files:
