Ars::XProgress Class Reference

#include <xprogress.h>

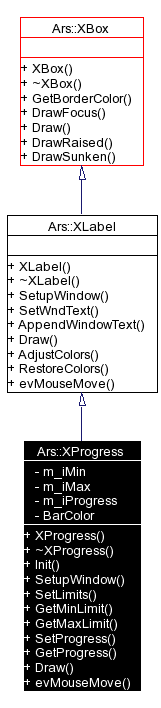

Inheritance diagram for Ars::XProgress:

[legend]Collaboration diagram for Ars::XProgress:

[legend]


Public Member Functions
	XProgress (void)
	~XProgress (void)
	Standard destructor.
virtual void	Init (icstring &aStr)
virtual const bool	SetupWindow (const Message &msg)
	Deregister the setup_window message.
virtual void	SetLimits (const int Min, const int Max)
	Set the limits of the progress bar.
const int	GetMinLimit (void) const
	The minimum limit of the progress bar.
const int	GetMaxLimit (void) const
	The maximum limit of the progress bar.
virtual void	SetProgress (const int iProgress, const bool aNow=false)
	Set the current progress value.
const int	GetProgress (void) const
	The current progress value.
virtual void	Draw (void)
	Draws the progress bar.
virtual const bool	evMouseMove (const MouseMessage &msg)
Private Attributes
int	m_iMin
	The minimum value of the progress bar.
int	m_iMax
	The maximum value of the progress bar.
int	m_iProgress
	The current value of the progress bar.
RGBColor	BarColor
	The color of the progress bar.

Constructor & Destructor Documentation

Ars::XProgress::XProgress ( void )

Constructs a progress bar, initilizes the limits to 0, and 100 with the progress at 0
Parameters:

WindowRect A CRect that defines the outer limits of the control

aStr the rest of the resource to initialize the object

Definition at line 6 of file xprogress.cpp.

00007 : m_iMin(0),m_iMax(100),m_iProgress(0),BarColor( 0 , 0 , 0 ) 00008 { 00009 }

Ars::XProgress::~XProgress ( void )

Standard destructor.

Definition at line 12 of file xprogress.cpp.

00013 { 00014 00015 }

Member Function Documentation

void Ars::XProgress::Draw ( void ) [virtual]

Draws the progress bar.

Reimplemented from Ars::XLabel.
Definition at line 49 of file xprogress.cpp.
References BarColor, Ars::XBox::DrawRaised(), Ars::HPaint::DrawRect(), Ars::XRect::Grow(), m_iMax, m_iMin, and m_iProgress.

00050 { 00051 XRect SubRect( *this ); 00052 SubRect.Grow( -1 ); 00053 if( m_iProgress > m_iMin ) 00054 { 00055 SubRect.w = static_cast<unsigned int>( SubRect.w * (static_cast<double>(m_iProgress - m_iMin) / (m_iMax - m_iMin) ) ); 00056 DrawRect( SubRect , true , BarColor , BarColor ); 00057 DrawRaised( SubRect , BarColor ); 00058 } 00059 00060 XLabel::Draw(); 00061 }

virtual const bool Ars::XProgress::evMouseMove ( const MouseMessage & msg ) [inline, virtual]

Reimplemented from Ars::XLabel.
Definition at line 59 of file xprogress.h.

00059 { return false; }

const int Ars::XProgress::GetMaxLimit ( void ) const [inline]

The maximum limit of the progress bar.

Definition at line 47 of file xprogress.h.
References m_iMax.

00047 { return m_iMax; }

const int Ars::XProgress::GetMinLimit ( void ) const [inline]

The minimum limit of the progress bar.

Definition at line 44 of file xprogress.h.
References m_iMin.

00044 { return m_iMin; }

const int Ars::XProgress::GetProgress ( void ) const [inline]

The current progress value.

Definition at line 53 of file xprogress.h.
References m_iProgress.

00053 { return m_iProgress; }

void Ars::XProgress::Init ( icstring & aStr ) [virtual]

Initialize the thing object via a string the CAR identifiers used are: min_max: lower and upper bounadry of the progress (default is 0 1) barColor: color to paint the progress bar (default = fgcolor + 32)
Reimplemented from Ars::Window.
Definition at line 17 of file xprogress.cpp.
References BarColor, Ars::Thing::GetFgColor(), icstring, m_iMax, and m_iMin.

00018 { 00019 XLabel::Init( aStr ); 00020 00021 icstring tmp = Rsrc::FindCrdOf( aStr , "min_max" ); 00022 m_iMin = max( 0 , Rsrc::GetInt( tmp ) ); 00023 m_iMax = max( 1 , Rsrc::GetInt( tmp ) ); 00024 00025 tmp = Rsrc::FindCrdOf( aStr , "barColor" ); 00026 BarColor = Rsrc::GetColor( tmp , GetFgColor().FadeColor( 32 ) ); 00027 }

virtual void Ars::XProgress::SetLimits ( const int Min,

const int Max

) [inline, virtual]

Set the limits of the progress bar.

Definition at line 41 of file xprogress.h.
References m_iMax, and m_iMin.

00041 { m_iMin = Min; m_iMax = Max; }

void Ars::XProgress::SetProgress ( const int iProgress,

const bool aNow = false

) [virtual]

Set the current progress value.

Definition at line 38 of file xprogress.cpp.
References m_iMax, m_iProgress, Ars::XLabel::SetWndText(), and Ars::Window::UpdateWindow().
Referenced by SetupWindow().

00039 { 00040 m_iProgress = min( m_iMax , iProgress ); 00041 00042 char tmp[50]; 00043 sprintf( tmp , "%d %%" , (m_iProgress * 100) / m_iMax ); 00044 SetWndText( tmp ); 00045 00046 UpdateWindow( aNow ); 00047 }

const bool Ars::XProgress::SetupWindow ( const Message & msg ) [virtual]

Deregister the setup_window message.

Reimplemented from Ars::XLabel.
Definition at line 29 of file xprogress.cpp.
References SetProgress().

00030 { 00031 XLabel::SetupWindow( msg ); 00032 00033 SetProgress( 0 ); 00034 00035 return false; 00036 }

Field Documentation

RGBColor Ars::XProgress::BarColor [private]

The color of the progress bar.

Definition at line 19 of file xprogress.h.
Referenced by Draw(), and Init().

int Ars::XProgress::m_iMax [private]

The maximum value of the progress bar.

Definition at line 13 of file xprogress.h.
Referenced by Draw(), GetMaxLimit(), Init(), SetLimits(), and SetProgress().

int Ars::XProgress::m_iMin [private]

The minimum value of the progress bar.

Definition at line 10 of file xprogress.h.
Referenced by Draw(), GetMinLimit(), Init(), and SetLimits().

int Ars::XProgress::m_iProgress [private]

The current value of the progress bar.

Definition at line 16 of file xprogress.h.
Referenced by Draw(), GetProgress(), and SetProgress().

The documentation for this class was generated from the following files:
